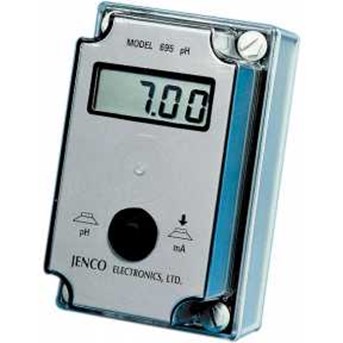

JENCO pH In-line Transmitter 695pH

Description 2-wire 4-20 mA pH transmitter in a sealed NEMA-4 enclosure with an LCD display powered by 11 to 80 Volts DC. Span is selectable any 1 to 14 pH unit via internal dip switch. Connections are BNC for pH and tinned leads for 3-K Balco ATC sensor or simulation resistor. * Input/ output isolated * Nema 4x enclosure * Large LCD display * 4 to 20 mA output * High accuracy * BNC input connector * High input impedance * 4 to 20 mA output scalable to any 1 pH or 100mv unit span ( 695pH/ 695ORP only) * Manual/ auto temp. compensation * Wide range power supply , 12 to 80 VDC Specifications pH Range : 0 to 14.00 pH Resolution : 0.01 pH Accuracy : 0.02pH ± 1 digit General * Span: Any 1 to 14 pH unit, selectable with internal dip s * Temp compensation: Auto 0 to 100.0° C or manual using fixed resistor * Input impedance: Greater than 1012 ohms * Operating temperature: -10 to 60° C * Connector: Bnc * Power source: 11 to 80 VDC * Dimensions: 4.92 x 2.95 x 3.94( NEMA 4x case) * Output: 4to 20 mA
